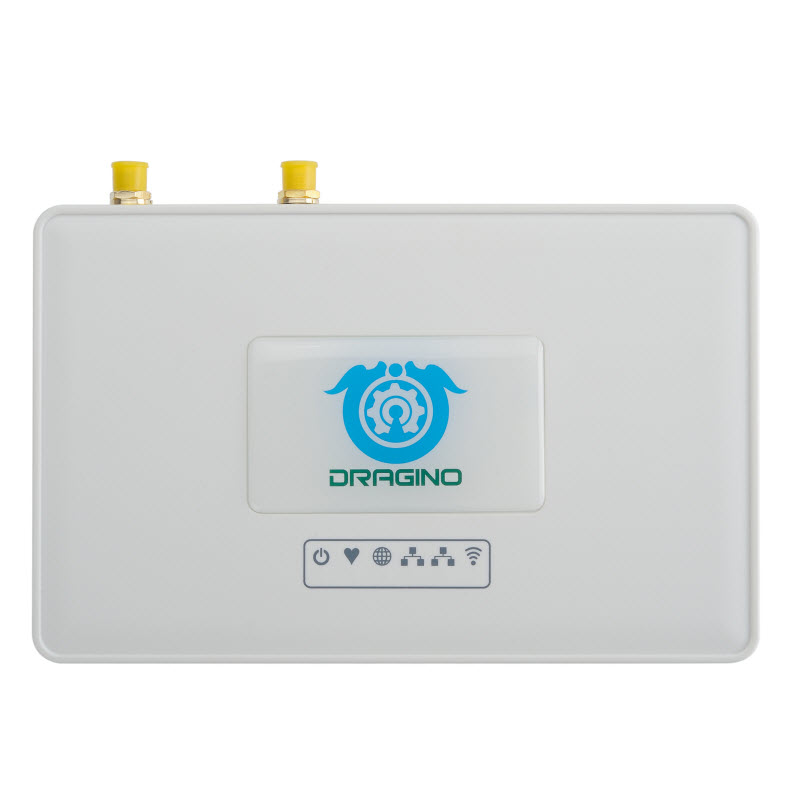

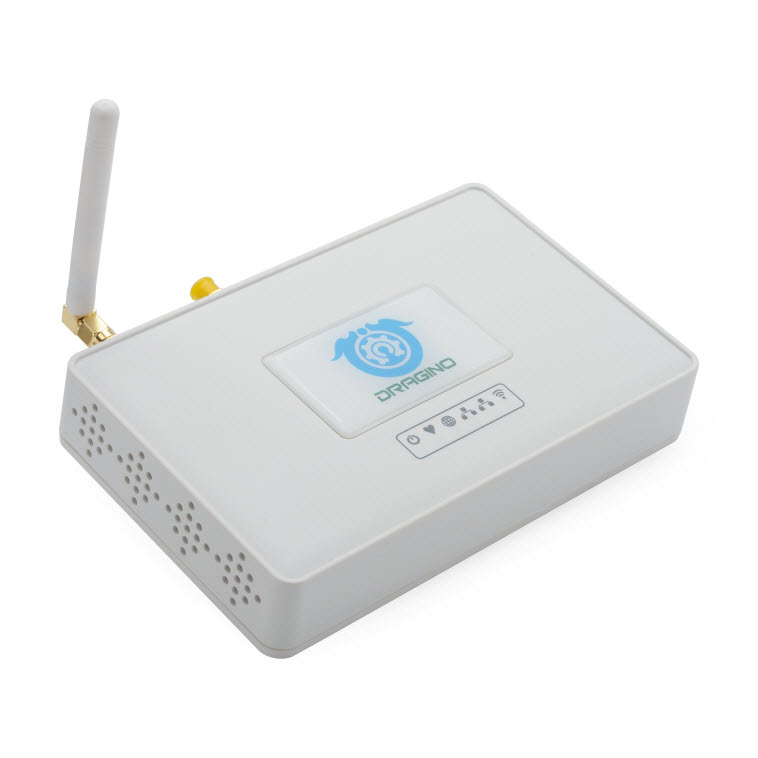

The LG308 is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LG308 uses semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1301 LoRa concentrator + 2 x SX1257, which provide 10 programmable parallel demodulation paths.

LG308 has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network.

LG308 has optional built-in LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.

Features:
Open Source OpenWrt system
Managed by Web GUI, SSH via LAN or WiFi
Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
Emulates 49x LoRa demodulators
LoRaWAN Gateway
10 programmable parallel demodulation paths

Specifications:
LoRa Spec:
1 x SX1301 + 2 x 1257 LoRa Tranceiver
General Specification:
10M/100M RJ45 Ports x 2
1 x 2.4G WiFi (802.11 bgn)
1 x USB host port
1 x Mini-PCIe Interface
Power Input: 12v, 1A

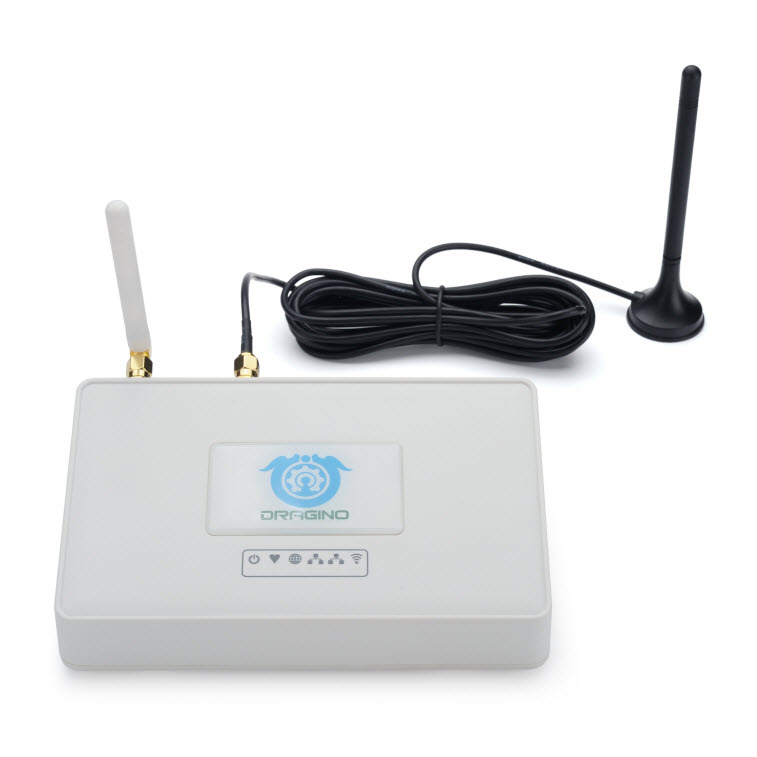

Cellular 4G LTE (optional):
Quectel EC25 LTE module ( Clink the link to find the right model for your region)
Micro SIM Slot
Internal 4G Antenna + External 4G Sticker Antenna.
Up to 100Mbps downlink and 50Mbps uplink data rates
Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

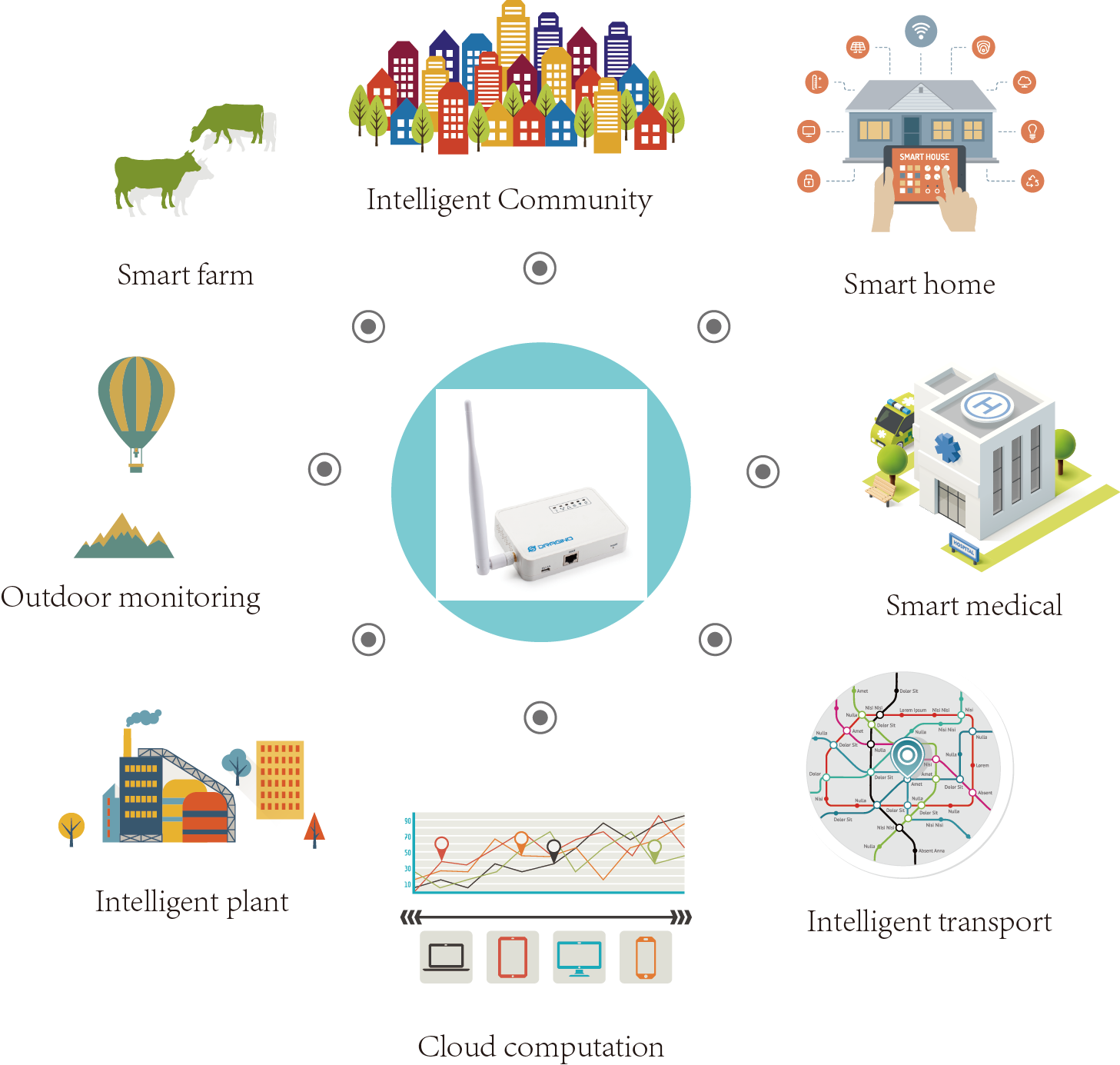

Applications:
Smart Buildings & Home Automation
Logistics and Supply Chain Management
Smart Metering
Smart Agriculture
Smart Cities
Smart Factory
